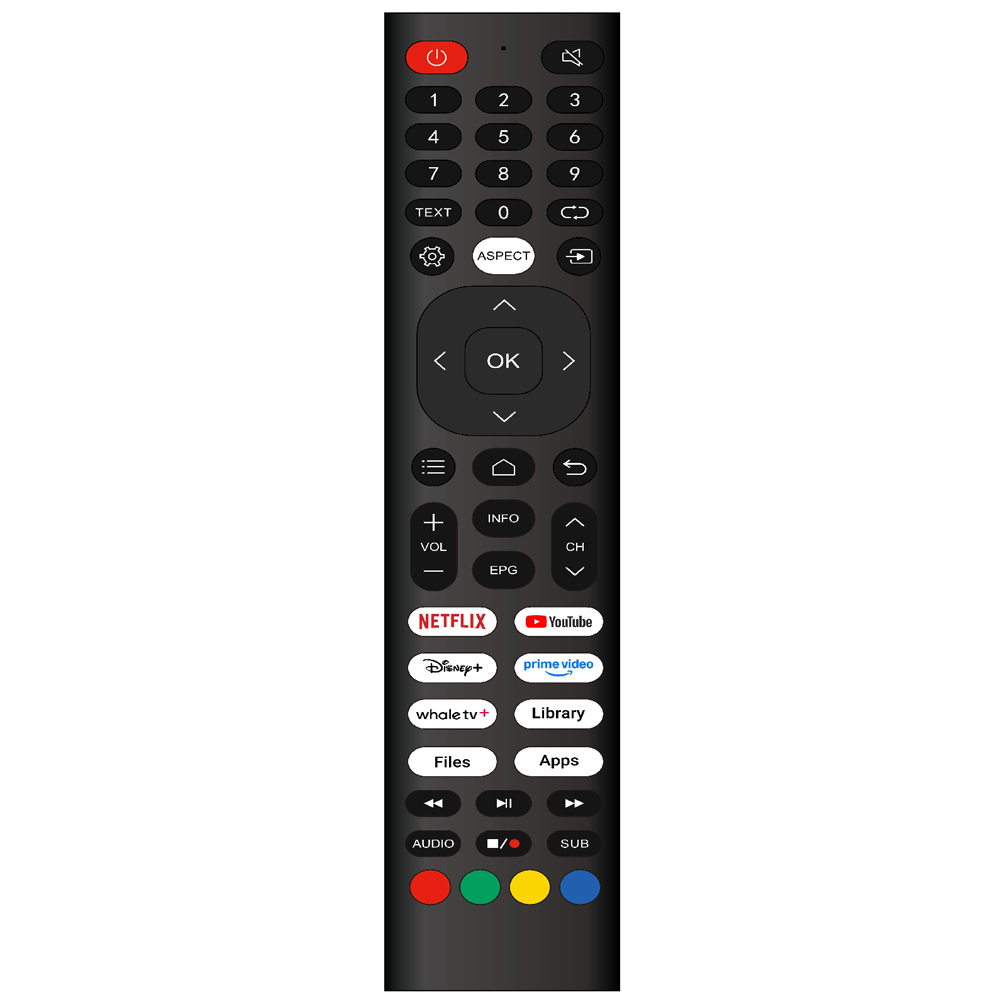

Product introduction

1.1 Scope of Application: Equipped with infrared remote control devices

1.2 Rated Voltage:DC3.0V

1.3 Applicable battery Power: 2 pcs of No. 7 battery

Serial number No. Item Test Requirements

2.1 Carrier fiequency

Remote control: 38KHZ

Receiver: 38KHZ

2.2 Working Voltage

Working voltage remote control: DC3.0V

2.3 Standby current

Static Current ≤3uA@ DC3V

2.4 Working Current

Current (VDD=3.0V)

Remote control (VDD=3.0V)

≤15 mA (Long key)

2.5 IR Transmit angel and Distance

Infrared linear > 7 m@VDD=3.0V

IR 15° > 6 m@VDD=3.0V

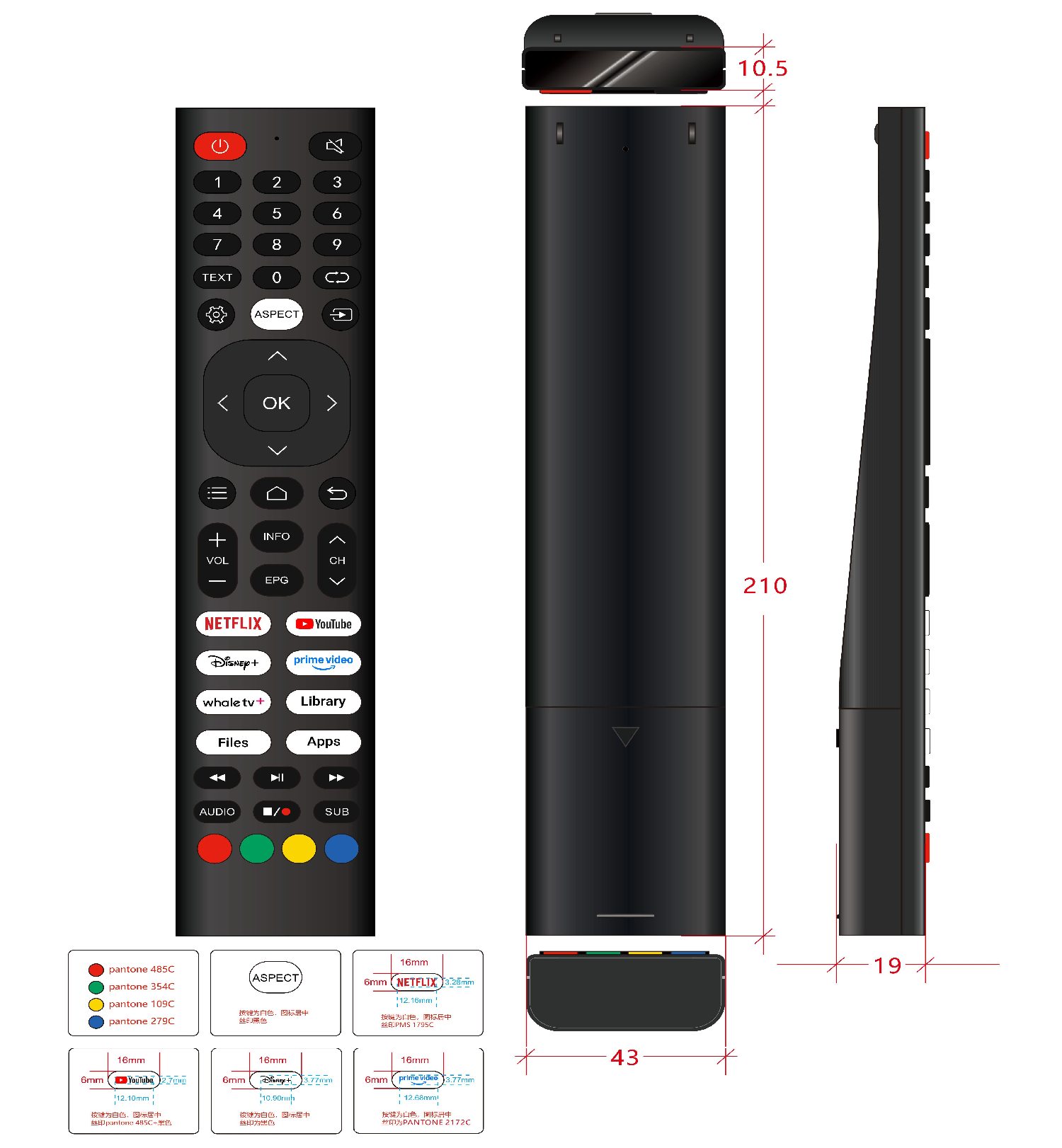

2.6Product size

43*210*18.5mm (Thinnest part 10.5mm)
