Product introduction

1.1 Scope of Application: Equipped with infrared remote control devices

1.2 Rated Voltage:DC3.0V

1.3 Applicable battery Power: 2 pcs of No. 7 battery

2.1 Remote Control Device Name

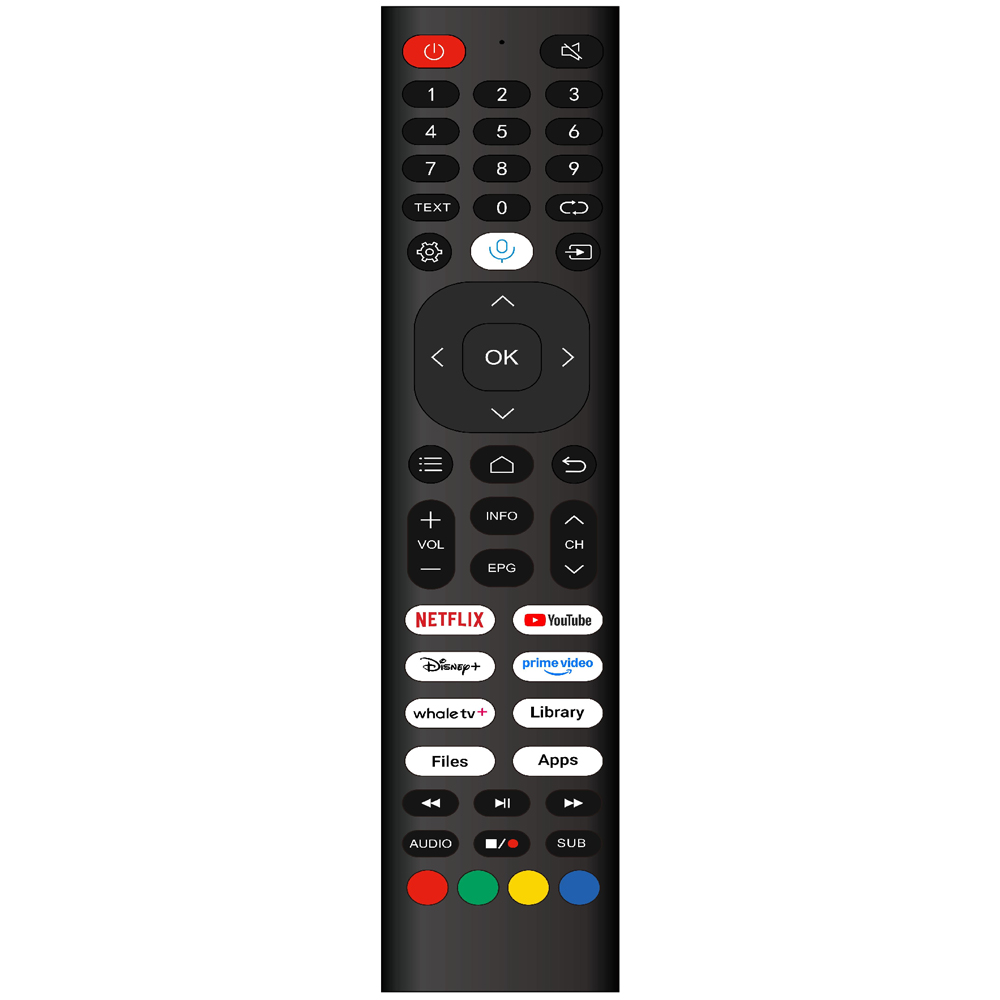

Remote control mod CTV AI REMOTE

2.2 Carrier frequency

Remote control: 2.400-2.4835 GHz

Receiver: 2400-2483 MHz

2.3 Working Voltage

Working voltage remote control: DC3.0V

2.4 Standby current

Static Current ≤7.9uA

2.5 Working current

Current (VDD=3.0v)

Remote control (VDD=3.0v)

The Key working current of RF keys is less than 8 mA

Infrared IR < 25 mA (Long key)

voice < 15 mA

Receiver (VDD=5.0V) < 11mA

3.6 Infrared emission Angle and distance

Operating voltage (3.0V)

Working Voltage(3V)

Infrared linear >8m

Infrared IR 15° >6m

RF > 6 m

3.7 Voice operation distance >8 m(Open space)

3.8 Support the operating system

Android 4.3 or above

Above Android 4.3

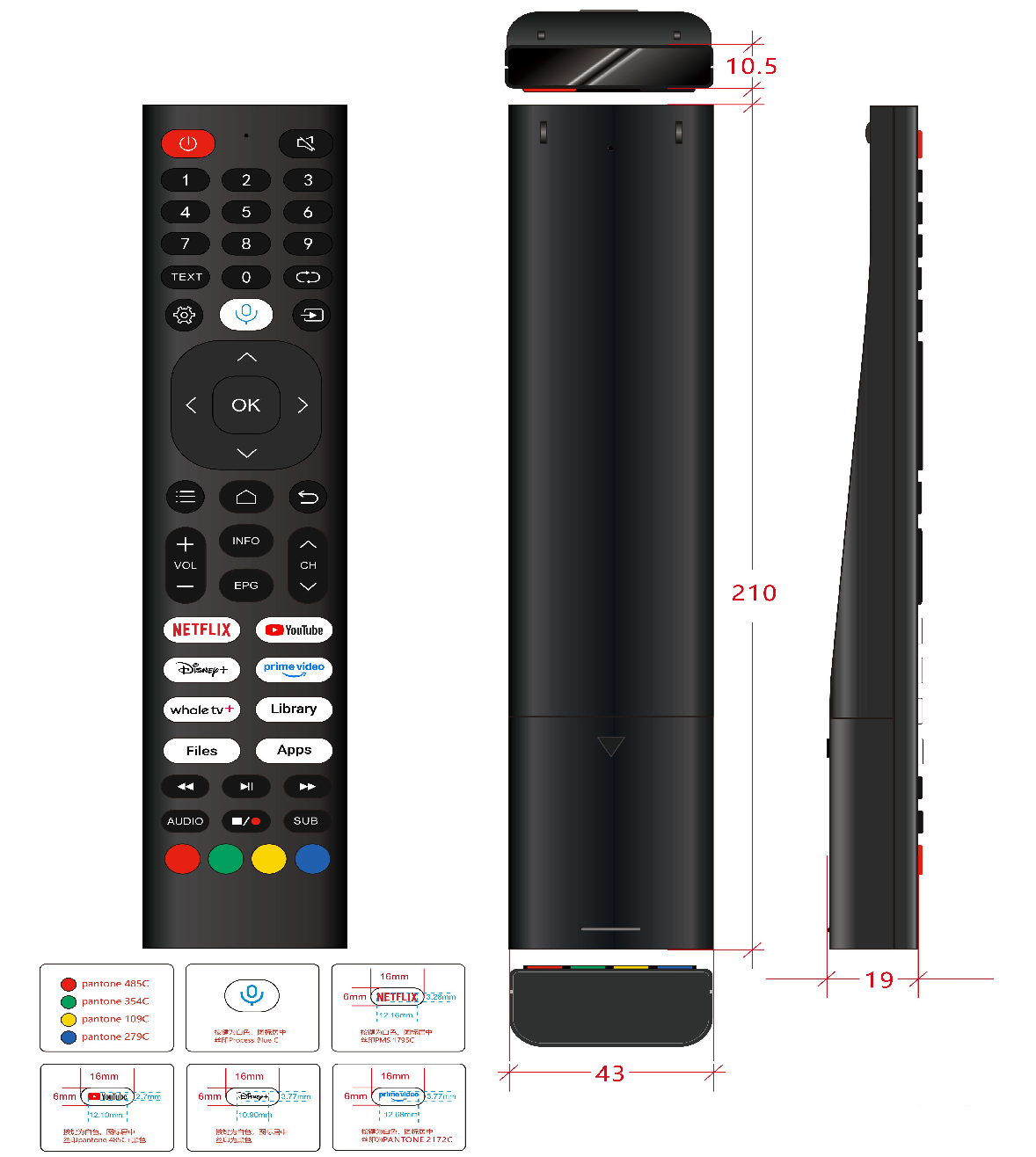

3.9 Product Dimensions

43*210*18.5mm (Thinnest part 10.5mm)
